HTP’s Groundbreaking HTP Everlast Elevate Water Heater – 55 Gallon with the Hot Water Capacity of a 100 Gallon Electric Unit
Emerging from the innovative lab of HTP’s New Bedford R&D center and shaped by a collaboration with Ariston Group’s Engineering and Quality teams, HTP presents the Everlast Elevate® Residential Electric Water Heater. This 55-gallon model provides the same level of comfort and performance as a conventional 50 – 100 gallon electric water heater. Simply adjust the thermostats to augment hot water output according to your needs. A factory-installed ASSE 1017 mixing valve ensures water is tempered before delivery, combining energy efficiency, durability, and maximum comfort into one easy-to-install package.

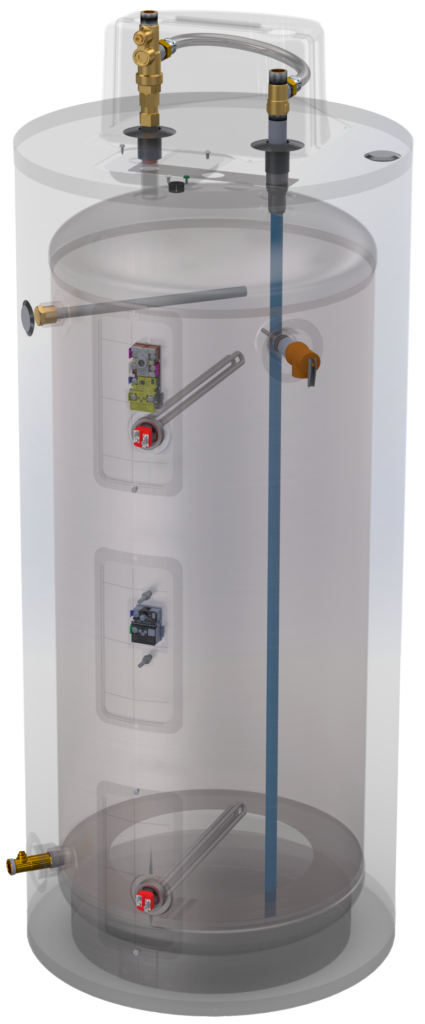

The Everlast® Elevate Residential Electric Water Heater is made from lightweight, corrosion-resistant 316L Stainless Steel. Its heating elements, crafted from Ariston’s low-watt density Titanium, are designed for increased corrosion resistance and extended lifespan, outperforming conventional steel or incoloy electric elements. A premium-grade aluminum anode rod offers further protection against corrosion. So confident are we in the quality and durability of the Elevate that it’s backed with an industry-leading lifetime limited warranty. When contractors and homeowners require enduring comfort solutions, they turn to HTP.
Performance and safety: The dual focus The Everlast® Elevate Residential Electric Water Heater, carrying a UL 174 safety certification, incorporates various design features to safely boost performance. Surface mount thermostats allow for accurate temperature measurement and include a built-in thermal cutout to prevent overheating. An ASSE 1017 thermostatic mixing valve ensures scald protection by consistently mixing outlet water. The design of the tank minimizes the mixing of cold inlet and stored heated water, delivering only the hottest water from the tank top. Environmentally friendly HFO foam insulation keeps stored water hot, maximizing the Elevate’s thermal storage.
Installation simplified Designed to fit within the footprint of a traditional 80-gallon electric water heater, the Everlast® Elevate is significantly lighter than conventional glass-lined models due to its size and 316L stainless steel construction. Installation of the factory-installed mixing valve assembly isn’t required: just connect the Elevate’s top inlet and outlet. A T&P Relief Valve and brass drain valve are pre-installed on the tank, and a top mount electrical junction box simplifies wiring. These features ensure the Everlast® Elevate is easy to install in new or retrofit settings.
Lifetime assurance The Everlast® Elevate Residential Electric Water Heater is backed by an industry-leading Lifetime Tank and Six Year Components Limited Warranty when registered online. If not registered, it comes with a default Ten Year Tank and One Year Components Limited Warranty. Please check the product warranty for full details.
Features at a glance • Dynamic capacity – designed to deliver the same hot water amount as a 100-gallon conventional electric water heater, from a 55-gallon unit. • Supreme durability – built with high-quality stainless steel, using low-watt density titanium elements, and supported by an industry-leading Lifetime Limited Warranty. • Ease of installation – lighter and easier to handle than glass-lined water heaters, seamlessly fitting into the footprint of an 80-gallon model. • Instant compliance with jurisdictions requiring the installation of a thermostatic mixing valve.
Unique selling points • Enhanced safety with integrated scald protection – a built-in ASSE 1017/ ASSE 1070 certified mixing valve ensures a consistent, safe water temperature. • Fully automatic surface mounted thermostats for precise temperature control, coupled with a manual energy cut-off to prevent overheating. • Temperature and pressure relief valve – comes pre-installed. • Full port brass drain valve – factory-installed for quick and easy draining.
Performance & quality • UEF rating of 0.94 • Up to 115 gallons of 105°F at the fixture when the tank is set to 170°F • 240 volts, 5500-watt input • Meets all efficiency requirements of the DOE • NAECA III compliant • 316L stainless steel tank • Aluminum anode rod for enhanced protection • Limited lifetime warranty
Warranty Registration – Click Here
